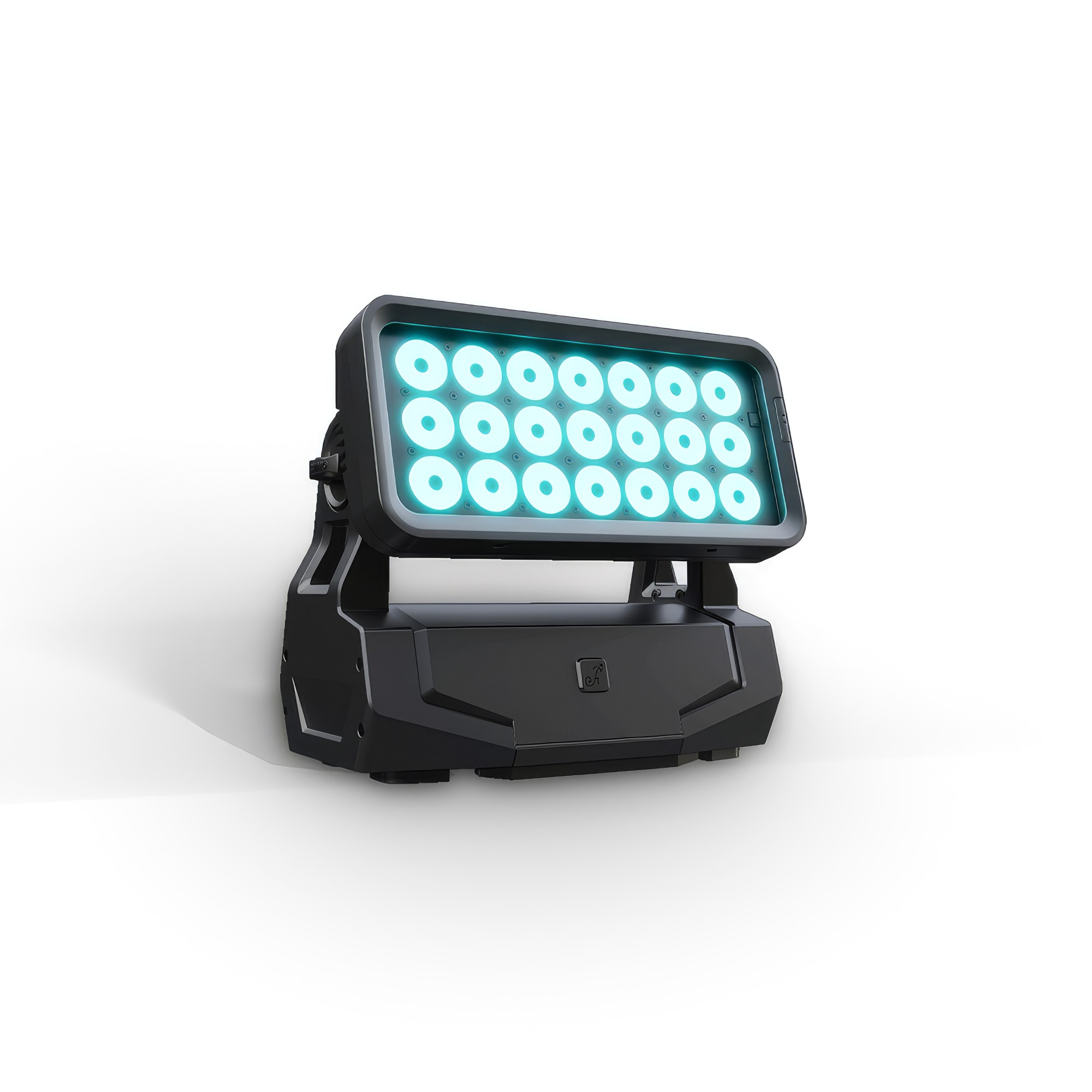

ZENIT® W300 G2 IP65 LED Wash Light

N.º artículo: CLZW300G2
Serie: ZENIT
21 x 50 W RGBALC LEDs with 14,000 lm luminous flux at 300 W power consumption
High colour rendering with CRI 98 and TLCI 95 for stage, TV and broadcast
Extremely precise, calibrated XColour™ colour mixing and vertical segment control for creative applications
Only 9.5 kg in weight thanks to compact, IP65-rated die-cast magnesium housing
Swiss-engineered cooling system with selectable fan modes
Fast setup and maintenance via the new all-in-one CAMEO CONNECT App: NFC setup, wireless configuration, firmware updates and direct service access
Quick rigging thanks to ergonomic handles and optimally positioned safety eyelets
Integrated Legacy Mode ensuring consistent colours, output and dimming behaviour with the previous model
Compatible with ZENIT® W300 G1 filters, barndoors and mounting materials
Optional Cameo SnapMag® FX Filter: DMX-controllable electronic frost for quick transitions of the beam angle


Contenidos y categorías

Mostrar todos

Contenidos y categorías

Series

Sugerencias de búsqueda

Mostrar todos los resultados
21 x 50 W RGBALC LEDs with 14,000 lm luminous flux at 300 W power consumption
High colour rendering with CRI 98 and TLCI 95 for stage, TV and broadcast
Extremely precise, calibrated XColour™ colour mixing and vertical segment control for creative applications
Only 9.5 kg in weight thanks to compact, IP65-rated die-cast magnesium housing
Swiss-engineered cooling system with selectable fan modes
Fast setup and maintenance via the new all-in-one CAMEO CONNECT App: NFC setup, wireless configuration, firmware updates and direct service access
Quick rigging thanks to ergonomic handles and optimally positioned safety eyelets
Integrated Legacy Mode ensuring consistent colours, output and dimming behaviour with the previous model
Compatible with ZENIT® W300 G1 filters, barndoors and mounting materials
Optional Cameo SnapMag® FX Filter: DMX-controllable electronic frost for quick transitions of the beam angle
Descripción

The Cameo ZENIT® W300 G2 expands the ZENIT® G2 series with a compact yet powerful solution for professional outdoor wash applications. As the smaller sibling of the ZENIT® W600 G2, it carries over the core technologies of the series and delivers them in an exceptionally lightweight and efficient format – ideal for setups where flexibility, weight and handling are key factors.

Equipped with 21 × 50 W RGBALC LEDs, a power consumption of 300 W and a luminous flux of 14,000 lumens, the ZENIT® W300 G2 offers impressive performance with high energy efficiency. Thanks to XColour™ technology, it features an extremely precise, calibrated colour mixing system and delivers outstanding colour quality with a CRI of 98 and a TLCI of 95 for stage, TV and broadcast applications. Vertical segment control enables differentiated looks and creative lighting accents.

In daily operation, the ZENIT® W300 G2 proves highly practical: weighing just 9.5 kg, its compact IP65-rated die-cast magnesium housing, ergonomic handles and optimally positioned safety eyelets are designed for fast rigging and reliable outdoor use. The Swiss-engineered cooling system with selectable fan modes ensures stable and quiet operation, even under demanding conditions.

The new Cameo Connect App allows quick and wireless configuration via NFC and provides direct access to the Adam Hall Service Portal, including firmware updates and support functions. For maximum investment security, the ZENIT® W300 G2 is fully compatible with filters, barndoors and mounting accessories from the W300 G1 series. In addition, it can be operated in Legacy Mode, allowing G1 and G2 fixtures to be used together with identical colours, looks and output. Optionally, the Cameo SnapMag® FX Filter extends the system with an electronic, DMX-controlled frost for fast adjustment of the beam angle.

Especificaciones
Valores fotométricos
Tipo de iluminante
LED RGBALC
Potencia iluminante
50 W
Flujo luminoso
14.000 lm
Ángulo del haz/campo
Beam: 18° / Field: 34°
Frecuencia PWM del LED
400 Hz, 650 Hz, 1.530 Hz, 3.600 Hz, 12 kHz, 18,9 kHz, 25 kHz
Resolución del regulador
16 Bit
Dimmer curves
Lineal, Exponencial, Logarítmico, Curva S
Colores
Funciones de mezcla de colores
RGB, x-y, HSI, CCT + Tint
LED colours
Rojo, Verde, Azul, Ámbar, Cal
Temperatura de color correlacionada (CCT)
1.800 - 10.000 K
Simulación halógena Redshift/DTW
Calibración
Smart calibration
Mín. TLCI
95
Control
Protocolos del controlador
CRMX, DMX512, RDM, W‑DMX™ (Transceiver)
Número de modos de control DMX
17
Modos de funcionamiento autónomo
Maestro/esclavo, Stand-alone
Data in connector
XLR 5-pole male
Data out connector
XLR 5-pole female
Funcionamiento en red
Tensión de funcionamiento
100 V AC - 240 V AC / 50 - 60 Hz
Potencia nominal
300 W
Mín. Factor de potencia Cos Phi (230 V)
0,99
Corriente de irrupción
68 A / 30,00 ms
Fusible de red
T10AL/250 V
Corriente de salida máx.
9 A
Carcasa
Material de la carcasa
Magnesio
Color
Negro
Medio ambiente
Clase de protección
IP65
Grupo de riesgo
2
Temperatura ambiente
-15 - 45 °C
Dimensiones y peso
Peso
9,5 kg
Otras propiedades
Accesorios incluidos
Cable de alimentación, Soporte de montaje
