AZOR® B1 Compact Beam Moving Head

Item No.: CLAB1
Series: AZOR® Series
Versions:
Beam Moving Head with 180,000 lx light intensity @ 3 m
Optical glass lens with extremely narrow 2° beam angle
16-bit three-phase motors
540° panning and 270° tilting with automated position correction.
Motorised focusing
14 colours plus open and split colours
17 static gobos plus open
Rotatable and indexable circular eightfold prism
Rotatable and indexable linear sixfold prism
4 programmable macros for standalone and master-slave operation
3-pin & 5-pin DMX sockets and Power Twist power in and power out sockets
Two Omega brackets and power cable included


Contents and categories

Display all

Contents and categories

Series

Search suggestions

Display all results
Beam Moving Head with 180,000 lx light intensity @ 3 m
Optical glass lens with extremely narrow 2° beam angle
16-bit three-phase motors
540° panning and 270° tilting with automated position correction.
Motorised focusing
14 colours plus open and split colours
17 static gobos plus open
Rotatable and indexable circular eightfold prism
Rotatable and indexable linear sixfold prism
4 programmable macros for standalone and master-slave operation
3-pin & 5-pin DMX sockets and Power Twist power in and power out sockets
Two Omega brackets and power cable included
Description

The Cameo AZOR B1 is a powerful Beam Moving Head featuring a high-quality glass lens, an extremely narrow 2° beam angle and motorised focusing. 16-bit, three-phase motors provide 540° panning and 270° tilting with automated position correction. A cold-white 100 W LED with 9,400 K colour temperature achieves incredible 180,000 lx light intensity at 3 metres, while the colour wheel offers 14 intense colours, plus white and split colours, to choose from.

Additional features of the AZOR B1 include 17 static gobos, a circular eightfold and a linear sixfold prism that are rotatable and indexable. When using as a standalone, four macros are available to freely program and can be perfectly synchronised in master-slave operation or inverted. The spotlight also features a rapid strobe function and a quiet, temperature-controlled fan.

Easy configuration is facilitated by the AZOR B1’s OLED display and four buttons, 3- and 5-pin DMX inputs and outputs, while Power Twist sockets ensure unproblematic daisy chaining. The Beam Moving Head is supplied with three Omega brackets and a power cable.

Specifications
DMX512
LED technology
Master & slave
RDM
Circular prism
Colour wheel
Focus
(Gobo wheel)
Linear prism

DMX512

Communication standard DMX512 was developed specially for lighting systems in 1986. Up to 32 DMX devices can be daisy-chained and controlled via a control source (e.g. a light mixer).

LED technology

LEDs are ideal for use in lighting systems: They are bright and have a low level of heat dissipation, a long operating life and low energy consumption. Moreover, LED systems often weigh less than conventional lighting systems.

Master & slave

Master/slave operation allows identical DMX devices to be controlled by a DMX device of the same model and software standard. All the devices are connected by DMX cables in series. The master device is then set to run in standalone mode and the slave devices are set to run in slave mode.

RDM

This device has full RDM capability. The RDM protocol supplements the DMX protocol and enables bidirectional communication via a standard DMX network. It simplifies configuration, administration and monitoring of RDM devices connected to an RDM controller.

The high-frequency control of the LEDs while dimming ensures flicker-free operation, including for filming purposes.

Circular prism

A circular prism multiplies the beam or the gobo projection, placing the result inside a circle.

Colour wheel

Turning the colour wheel, which is fitted with various filters, enables very fast changes of colour.

Focus

The focus function serves to focus the light beam and the gobo projection at any distance.

(Gobo wheel)

Gobo wheels are fitted with static or rotating gobos made of metal or glass. Gobos are essentially templates that allow the projection of patterns, shapes and graphics.

Linear prism

A linear prism multiplies the beam or the gobo projection, placing the result inside a row.

General
Product type
LED Moving Lights
Type
Moving Head
Colour spectrum
Cold white
Number of LEDs
1
Color temperature
9400 K
Average LED lifetime
> 20000 hours
LED type
100 W
Refresh rate
Adjustable up to 3,600 Hz
Dispersion
2 °
DMX input
XLR 3-pin male, XLR 5-pin male
DMX output
XLR 3-pin female, XLR 5-pin female
DMX mode
13-channel, 16-channel
DMX Functions
Colour wheel, Device Settings, Dimmer, Dimmer Fine, Focus, Gobo wheel, PAN, PAN FINE, Pan/Tilt Macros, Pan/Tilt Speed, Prism Rotation/Indexing, Prism Selection, Set Dimmer Curve, Strobe, TILT, TILT FINE
PAN movement
540
TILT movement
270
High Speed Strobe
> 20 Hz
Standalone modes
4 x User Macros, Master / Slave mode, Settings
Controls
Enter, Mode, Value Down, Value Up
Indicators
OLED Display
Operating voltage
100 V AC - 240 V AC, 50 - 60 Hz
Power consumption
180 W
Power supply connector
Blue & White Power Twist I/O
Housing material
ABS plastic, Metal
Cabinet colour
Black
Protection class IP
IP20
Cooling
temperature-controlled fan
Illuminance
180,000 lx @ 3 m
Luminous flux
1800 lm
Maximum Ambient Temperature
-15 - 45 °C
Width
306 mm
Height
437 mm
Depth
220 mm
Weight
13,9 kg
Features
2 x Omega Clamp, Power supply
Downloads & links
Name
Category
Type
File size
User´s Manual Manual pdf 3 MB
DMX Control Table Data Sheet pdf 61 KB
Data sheet Data Sheet pdf 1 MB
Photometric measurements Data Sheet pdf 877 KB
Technical drawing Data Sheet dwg 8 MB
Technical drawing Data Sheet pdf 4 MB
GDTF File (07-2023) Software zip 596 KB
Fixture Library Daslight Software zip 84 KB
Fixture Library grandMA2 Software zip 8 KB
Tender documents Tender Specifications zip 131 KB
Cameo Product Catalogue 2024 Catalog pdf 12 MB
Product images Image files zip -
User´s Manual

Category: Manual

Type: pdf

File size: 3 MB

DMX Control Table

Category: Data Sheet

Type: pdf

File size: 61 KB

Data sheet

Category: Data Sheet

Type: pdf

File size: 1 MB

Photometric measurements

Category: Data Sheet

Type: pdf

File size: 877 KB

Technical drawing

Category: Data Sheet

Type: dwg

File size: 8 MB

Technical drawing

Category: Data Sheet

Type: pdf

File size: 4 MB

GDTF File (07-2023)

Category: Software

Type: zip

File size: 596 KB

Fixture Library Daslight

Category: Software

Type: zip

File size: 84 KB

Fixture Library grandMA2

Category: Software

Type: zip

File size: 8 KB

Tender documents

Category: Tender Specifications

Type: zip

File size: 131 KB

Cameo Product Catalogue 2024

Category: Catalog

Type: pdf

File size: 12 MB

Product images

Category: Image files

Type: zip

File size: -

Stories
12. Sept 2024

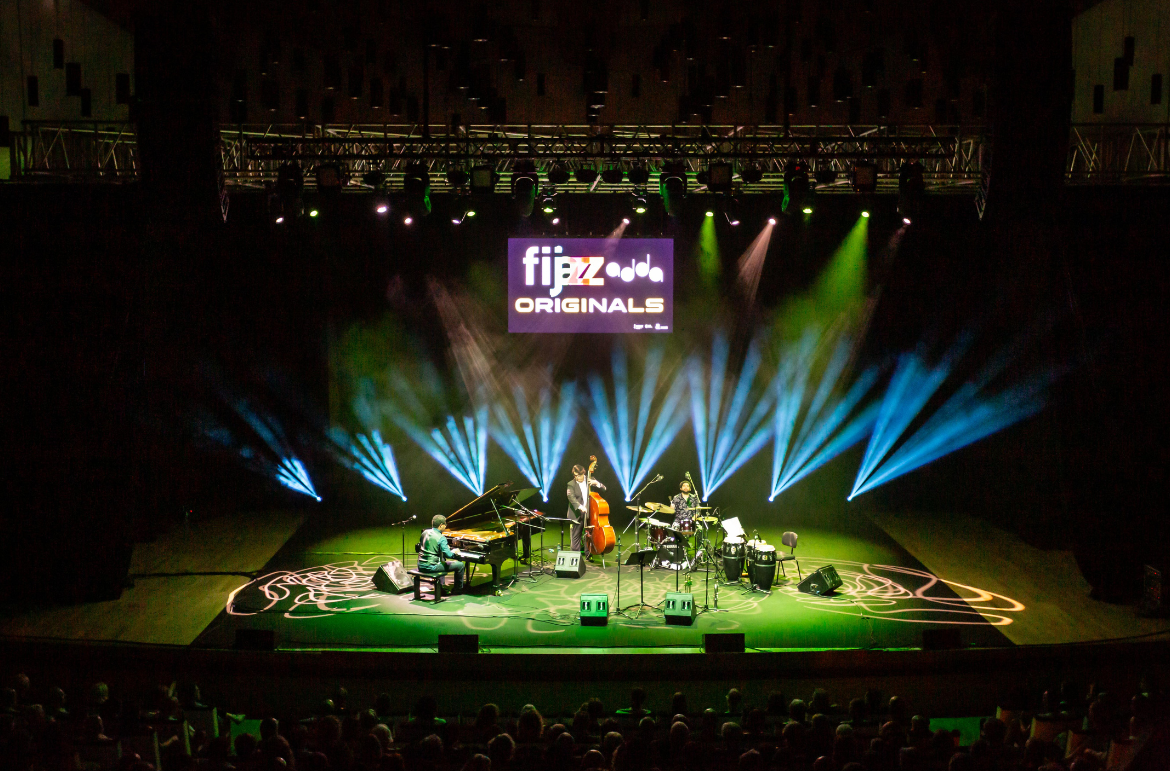

Jazz in the symphony hall – Cameo illuminates the 2024 FIJAZZ Festival in Alicante
28. Feb 2024
Surround Experience – An immersive 7.1 sound and light production with LD Systems and Cameo
23. Jan 2024
Compact Design. Do Epic – Cameo presents compact AZOR® SP2 and AZOR® W2 moving heads
19. Sept 2023

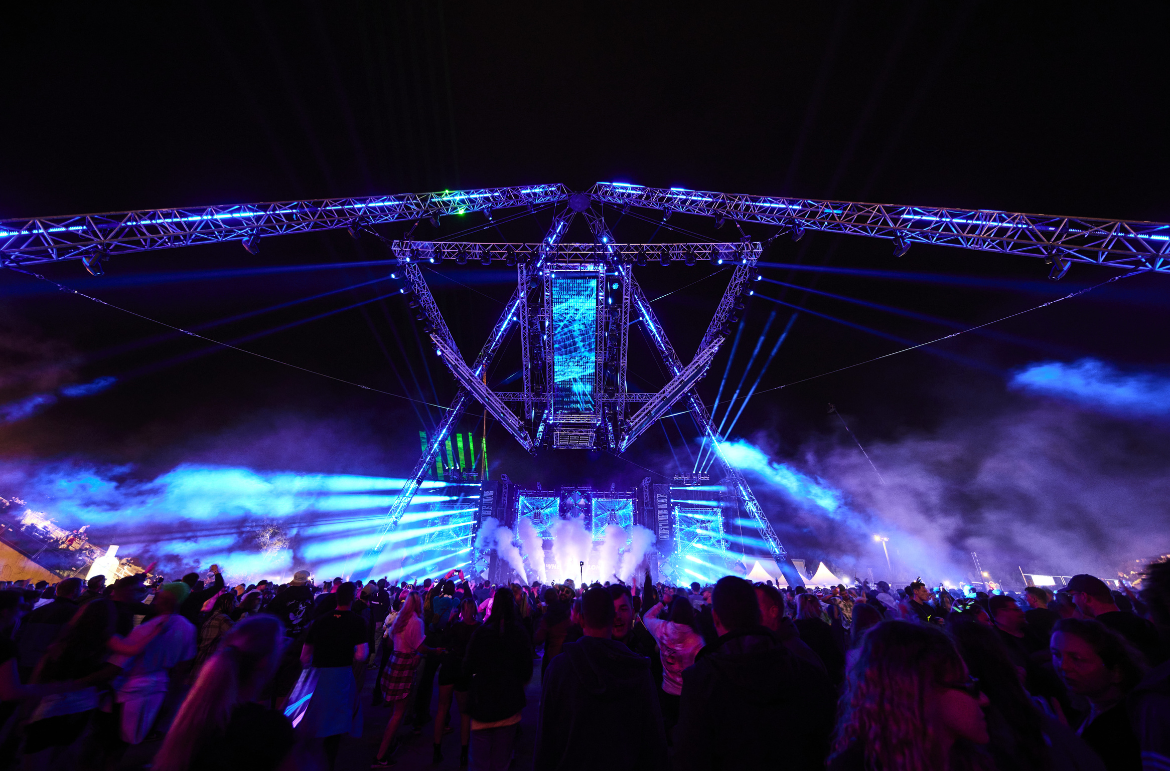

Where We Belong – Cameo at NATURE ONE 2023
15. Aug 2023

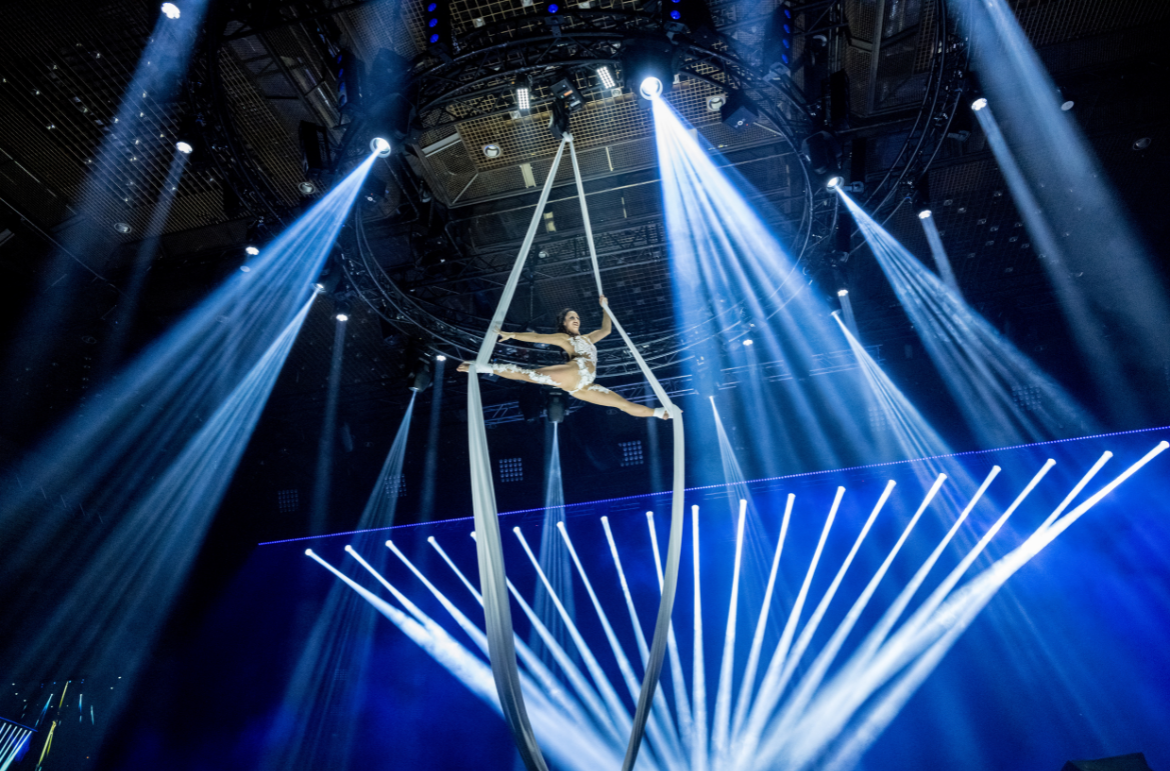

Illusions in the spotlight – magician Maxim Maurice tours with Cameo
7. Jun 2023

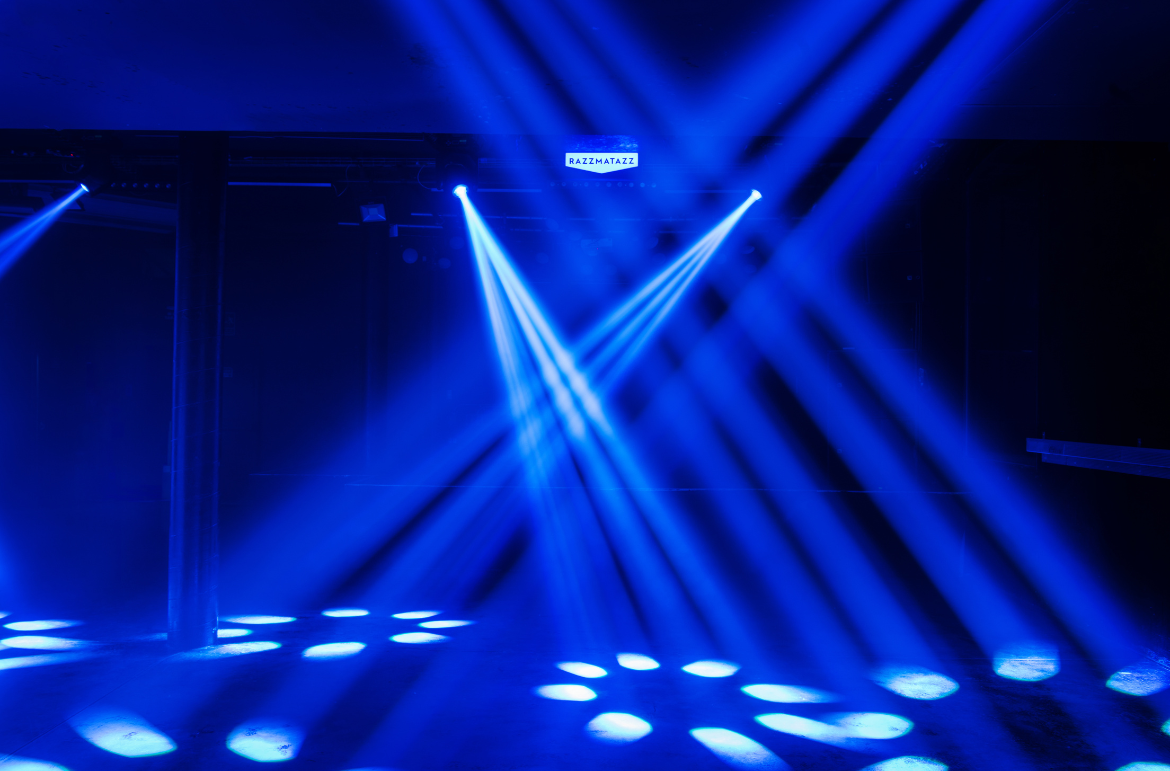

Cameo pushes the Lolita Room at Razzmatazz to new heights
20. Feb 2023
Radiant Carnival – Cameo lights up the alternative Stunksitzungen in Cologne
23. Aug 2022

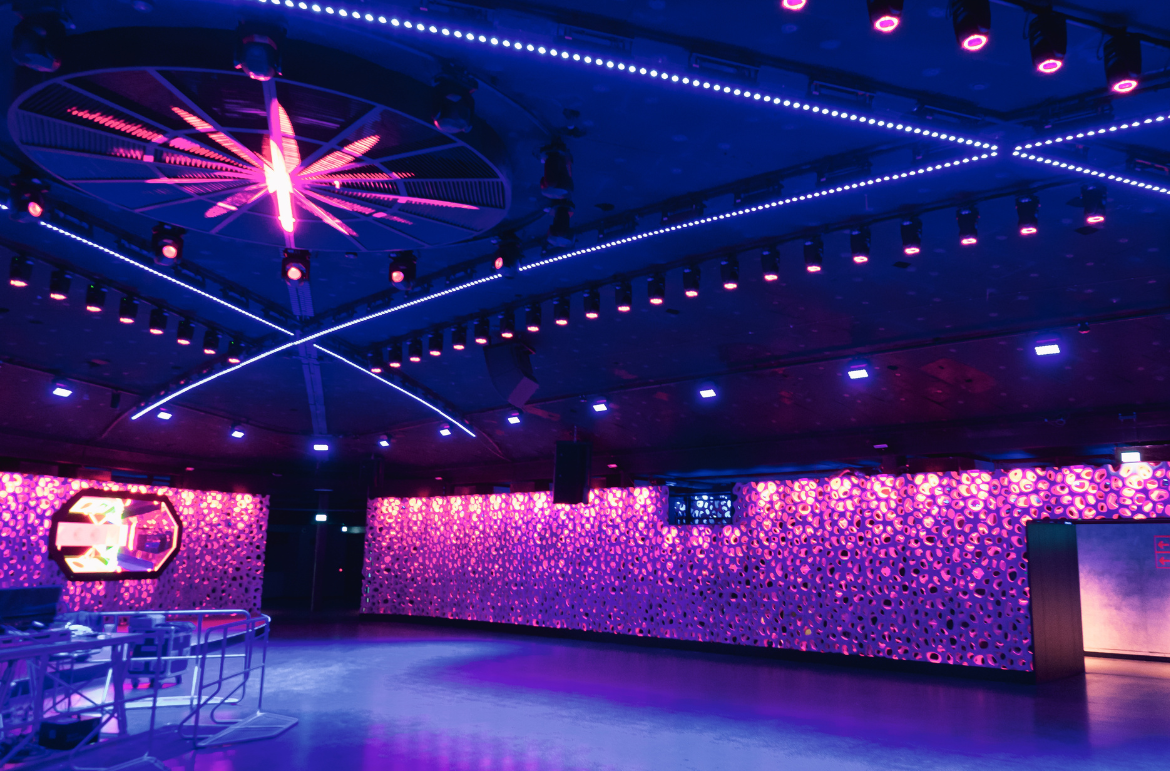

Light art in the techno temple – Cameo at the new ZOOM Club in Frankfurt
21. Aug 2019

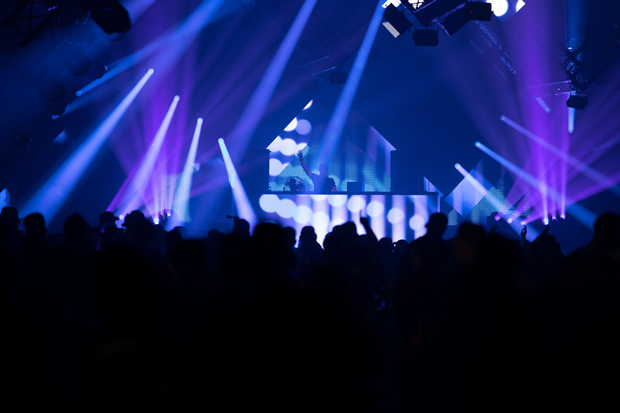

Beams and Bass for the Dancing Crowd – Cameo OPUS SP5 and AZOR B1 at NATURE ONE
