ZIYA® 200 IP65 LED Zoom PAR

Item No.: CLZIYA200
Series: ZIYA®
Versions:
Zoom PAR with 4 × 60 W RGBL LEDs for precise colour display
Wide zoom range from 5°-32° (field 7°-50°) for dynamic looks
CRI: 83 (3,200 K) / 80 (5,600 K)
Light output: 3,500 lm
Motorised silent zoom with vibration-free operation
Variable colour temperature (CCT) from 2,400 K to 10,000 K and 15 colour presets
Various fan modes can be selected
Robust IP65 housing for outdoor and touring applications
Patented SPIN16® technology for quick and flexible installation thanks to the 16 mm TV spigot integrated into the bracket
Optional accessories: barndoor & flight case


Contents and categories

Display all

Contents and categories

Series

Search suggestions

Display all results
Zoom PAR with 4 × 60 W RGBL LEDs for precise colour display
Wide zoom range from 5°-32° (field 7°-50°) for dynamic looks
CRI: 83 (3,200 K) / 80 (5,600 K)
Light output: 3,500 lm
Motorised silent zoom with vibration-free operation
Variable colour temperature (CCT) from 2,400 K to 10,000 K and 15 colour presets
Various fan modes can be selected
Robust IP65 housing for outdoor and touring applications
Patented SPIN16® technology for quick and flexible installation thanks to the 16 mm TV spigot integrated into the bracket
Optional accessories: barndoor & flight case
Description

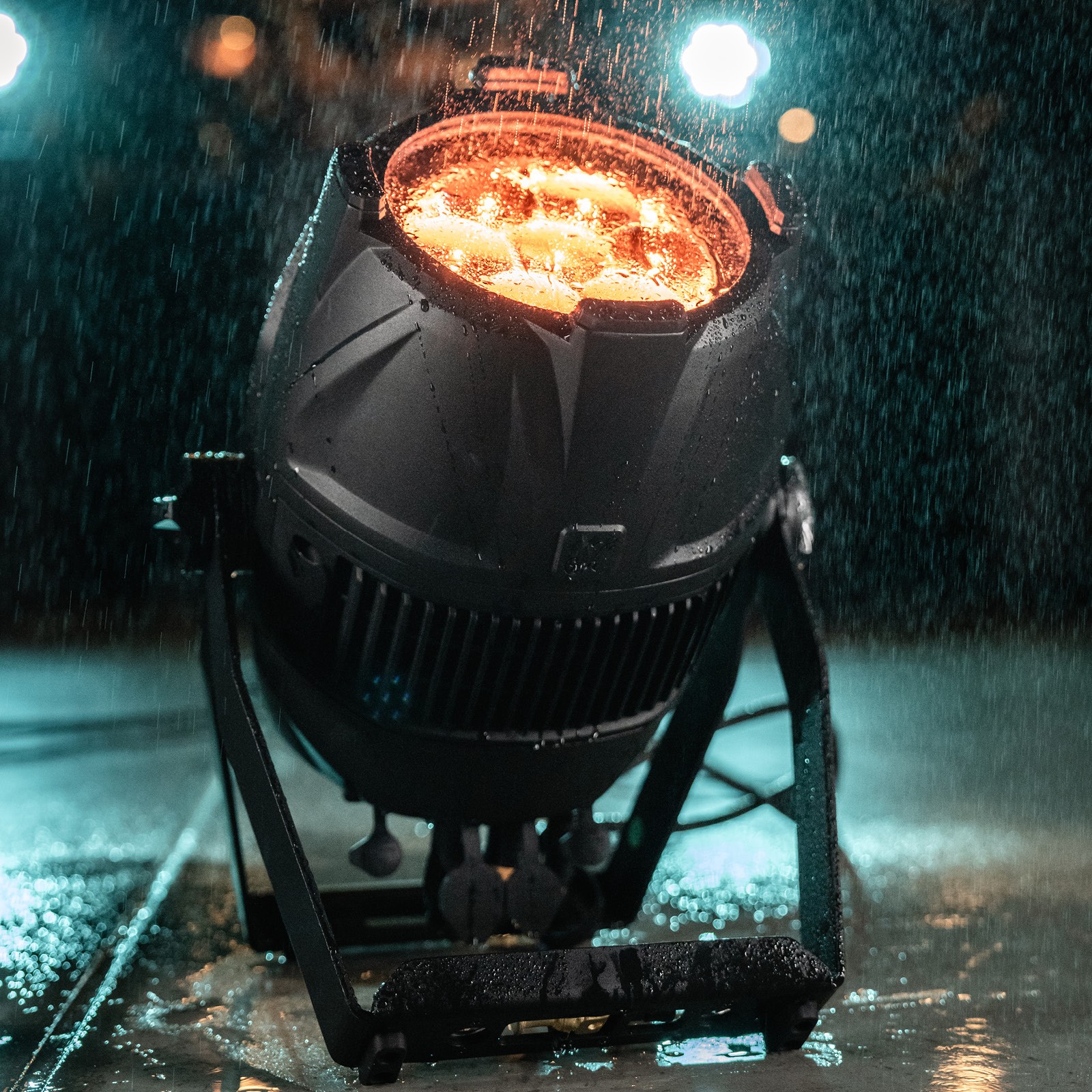

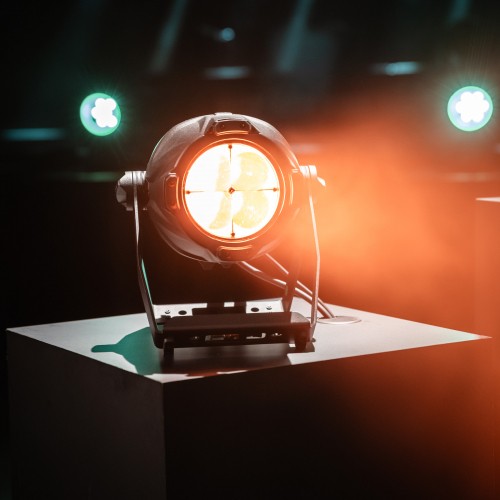

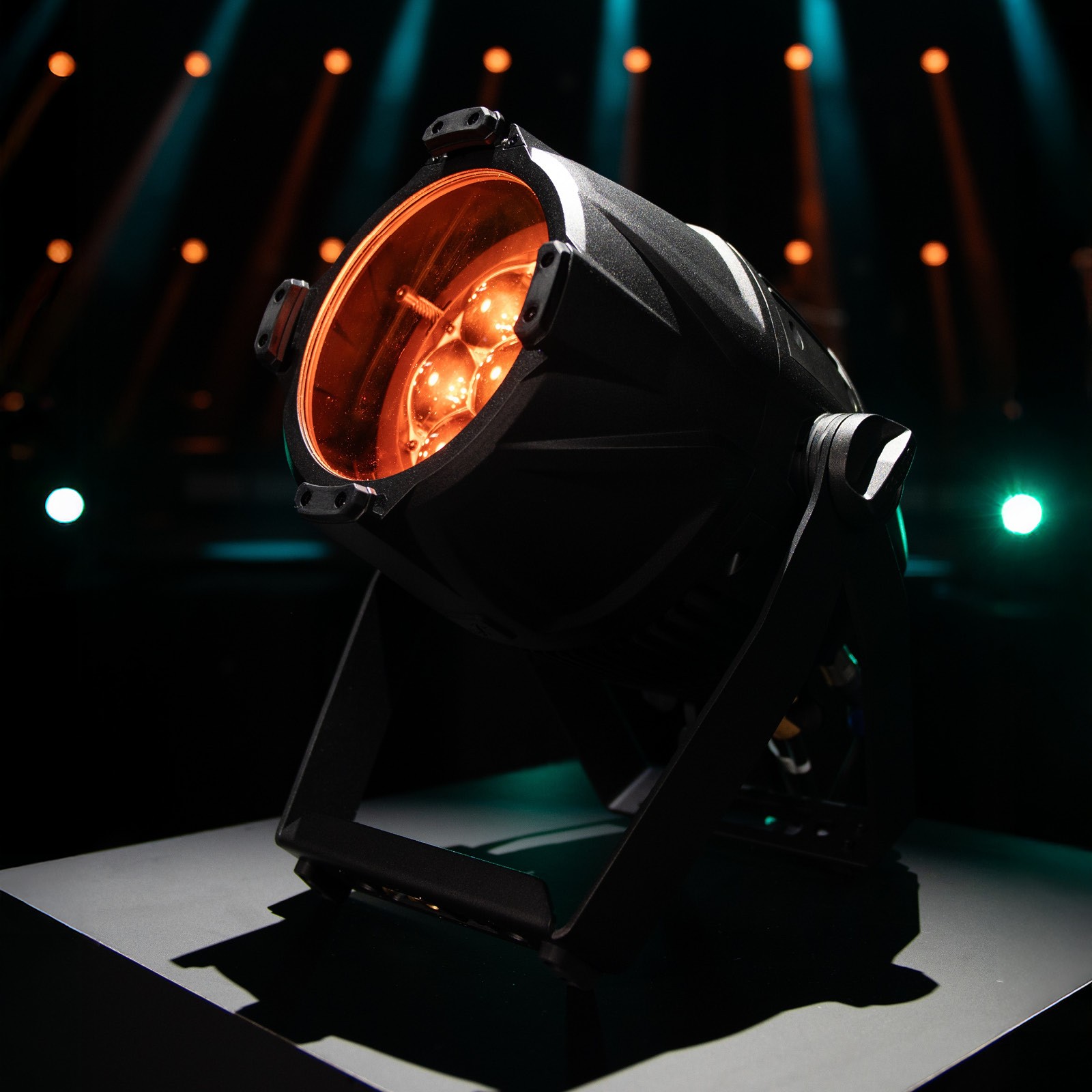

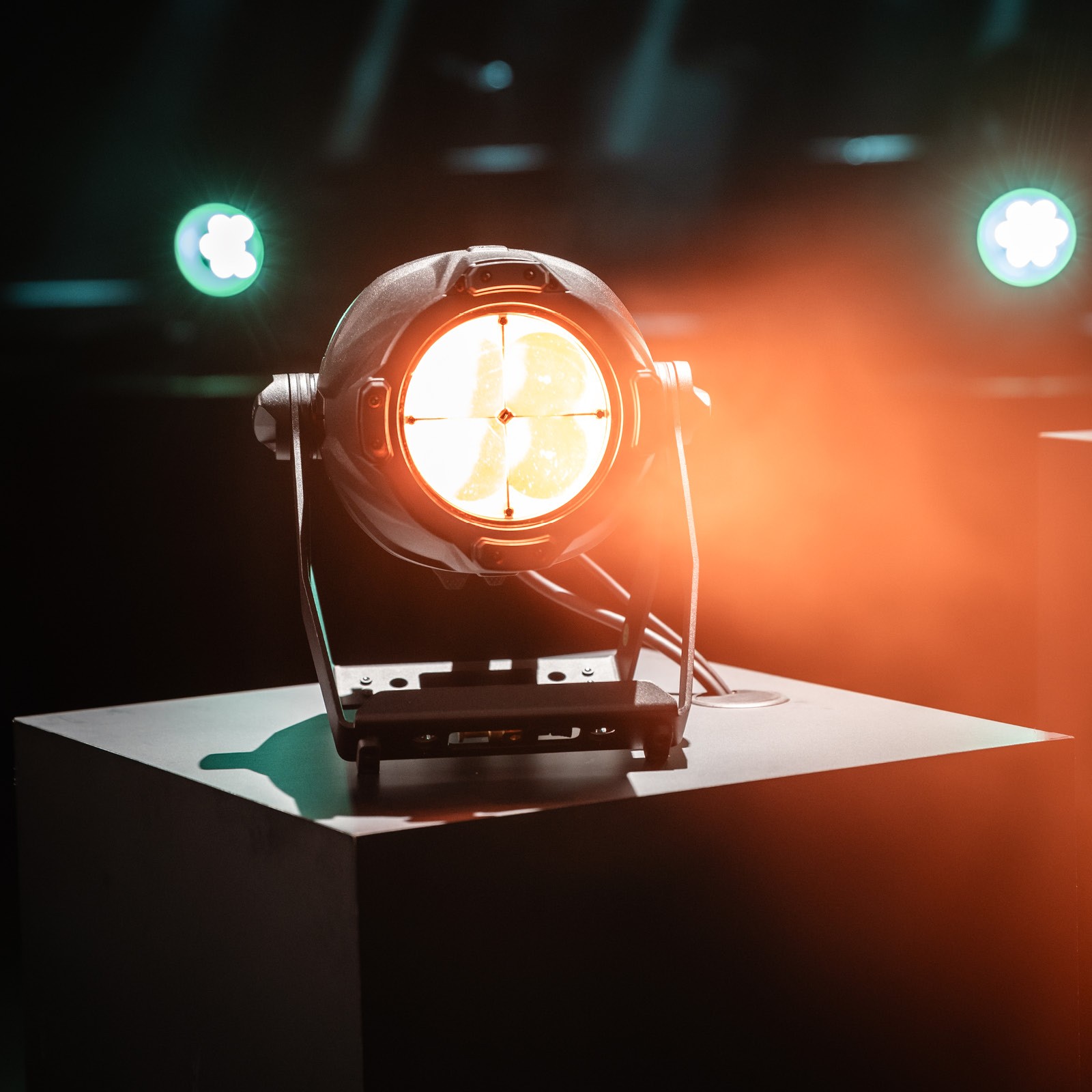

The ZIYA® 200 is a versatile LED zoom PAR with 4 x 60 W RGBL LEDs and IP65 certification. Its wide zoom range of 5° to 32° (field 7°-50°) enables both tightly focused narrow beams and uniform area lighting – perfect for precise lighting design on small and medium-sized stages.

The motorised silent zoom is vibration-free and ensures smooth transitions between spotlighting and atmospheric illumination. With a CRI of 83 at 3,200 K and 80 at 5,600 K, the ZIYA® 200 offers natural colour rendering and impressive quality of light in every application.

The robust IP65 housing has a bevelled rear for optimum cable access, so that connections can be easily reached even when installed. In combination with the integrated, patented SPIN16® system and multiple fan modes, the design enables fast, safe rigging and reliable operation – whether on tour or at corporate events.

Specifications
Photometric values
Illuminant type
RGBL LED
Illuminant power
60 W
LED data
4 x 60 W RGBL LED
Front lens diameter
139 mm
Beam/Field angle
Beam: 5° / Field: 50°
Zoom range
5 - 50 °
LED PWM frequency
1,530 Hz, 3,600 Hz, 12 kHz, 18.9 kHz, 25 kHz
Dimmer resolution
16 Bit
Dimmer curves
Linear, Exponential, Logarithmic, S curve, Tungsten
Colours
Colour mix functions
RGB
LED colours
Red, Green, Blue, Lime
Colour control
Analog modulation, Colour film (GEL), HSI, Direct (single control), CTC with tint, xy (color triangle)
Correlated colour temperature (CCT)
2,400 - 10,000 K
Colour rendering index (CRI)
> 83
Effects
Strobe
0 - 20 Hz
Framing blades
No
Control
Controller protocols
DMX512, RDM, W-DMX™ (Receiver)
Number of DMX control modes
11
Stand alone operating modes
Autorun, Master/slave, Static, Stand-alone
Data in connector
XLR 5-pole male
Data out connector
XLR 5-pole female
Mains operation
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Rated power
240 W
Mains connector
Mains plug device outdoor male & TRUE1®
Power out connector
Mains plug device outdoor female & TRUE1®
Housing
Chassis material
Die-cast aluminium
Colour
Black
Cooling
Cooling system
Temperature controlled fan cooling
Environmental
Protection class
IP65
Risk group
2
Ambient temperature
-15 - 45 °C
Maximum air humidity (non-condensing)
100 %
Dimensions & weight
Width
213 mm
Height
202 mm
Depth
312 mm
Weight
7.9 kg
Other properties
Included Accessories
Mains cable
