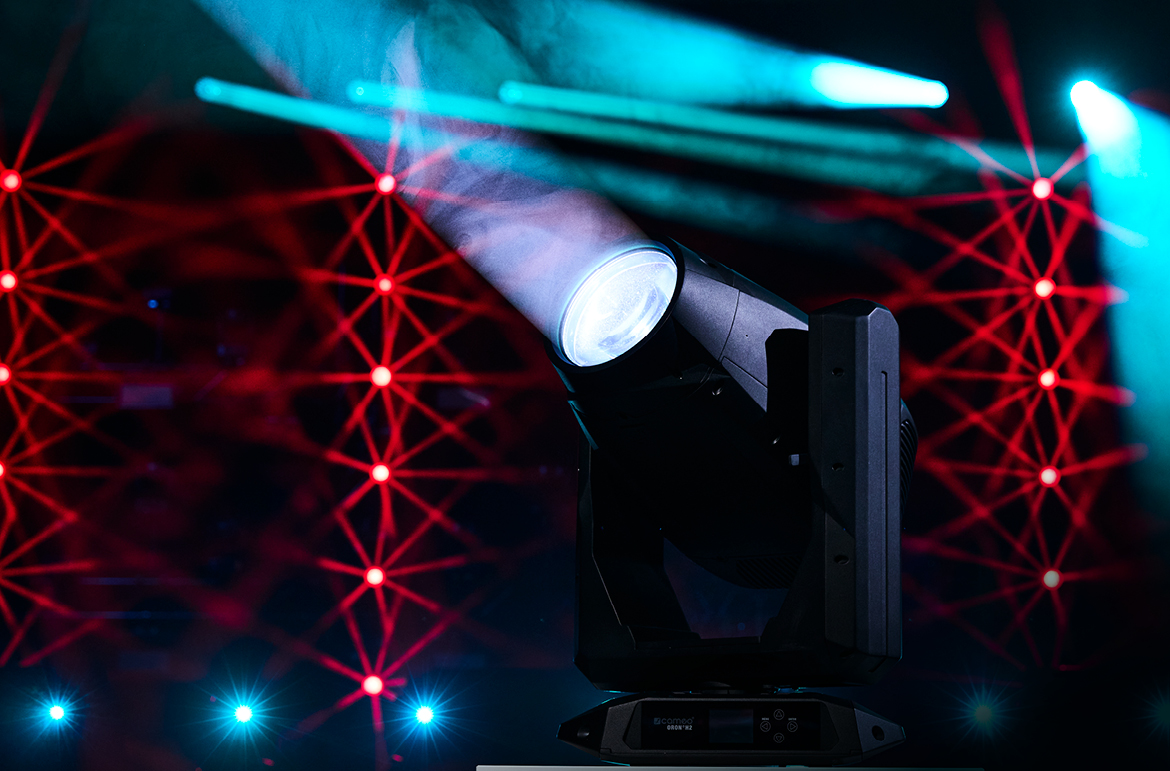

ORON® H2 IP65 Hybrid Moving Head with Laser Engine

Item No.: CLORONH2
Series: ORON® Series

All data are preliminary

  • 260W Laser Phosphor Engine
  • CMY colour mixing
  • Linear CTO
  • DMX/RDM, ArtNet, sACN, W-DMX, CRMX
  • Zoom range from 0,6° to 32°
  • 19 fixed gobos + open and 12 rotating gobos + open
  • 2 prism layers with 8 effects (prism, multicolor + frost)
  • Shock protective touring case insert included
  • Only 33 kg


Contents and categories

Display all

Contents and categories

Series

Search suggestions

Display all results

All data are preliminary

  • 260W Laser Phosphor Engine
  • CMY colour mixing
  • Linear CTO
  • DMX/RDM, ArtNet, sACN, W-DMX, CRMX
  • Zoom range from 0,6° to 32°
  • 19 fixed gobos + open and 12 rotating gobos + open
  • 2 prism layers with 8 effects (prism, multicolor + frost)
  • Shock protective touring case insert included
  • Only 33 kg
Specifications
Photometric values
Illuminant type
Laser Phosphor
Illuminant power
260 W
Illuminance
260000 lx (20 m / 0.8 °)
Front lens diameter
178 mm
Beam/Field angle
Beam: 0.6 ° / Field: 32 °
Zoom range
0.6 - 32 °
Focusing type
Driven
Dimmer resolution
16 Bit
Colours
Colour mix functions
CMY + CTO
Laser colors
Cold white
Correlated color temperature (CCT)
3,000 - 6,500 K
Min. colour rendering index (CRI)
85
Movement
Pan
540 °
Tilt
270 °
Effects
Gobo wheels
2
Gobo wheel 1 – functions
Fixed
Gobo wheel 1 – gobos
19
Gobo wheel 2 – functions
Rotatable
Prism layers
2
Strobe
0 - 20 Hz
Frost
2
Control
Controller protocols
Art‑Net, DMX512, RDM, sACN, W‑DMX™ (Transceiver)
Additional DMX features
System settings
Data in connector
RJ-45 socket, XLR 5-pole male
Data out connector
RJ-45 socket, XLR 3-pole female
Mains operation
Operation voltage
100 V AC - 240 V AC/50 - 60 Hz
Rated power
460 W
Mains connector
Mains plug device male IP65
Power out
Mains plug device female IP65
Housing
Colour
Black
Cooling system
Temperature controlled fan cooling
Environmental
Protection class
IP65
Temperature range
-20 - 40 °C
Dimensions & weight
Weight
33 kg
Downloads & links
Name
Category
Type
File size
Tender documents Tender Specifications zip 131 KB
CAMEO Product Catalogue Catalog pdf 9 MB
Product images Image files zip -
Tender documents

Category: Tender Specifications

Type: zip

File size: 131 KB

CAMEO Product Catalogue

Category: Catalog

Type: pdf

File size: 9 MB

Product images

Category: Image files

Type: zip

File size: -
