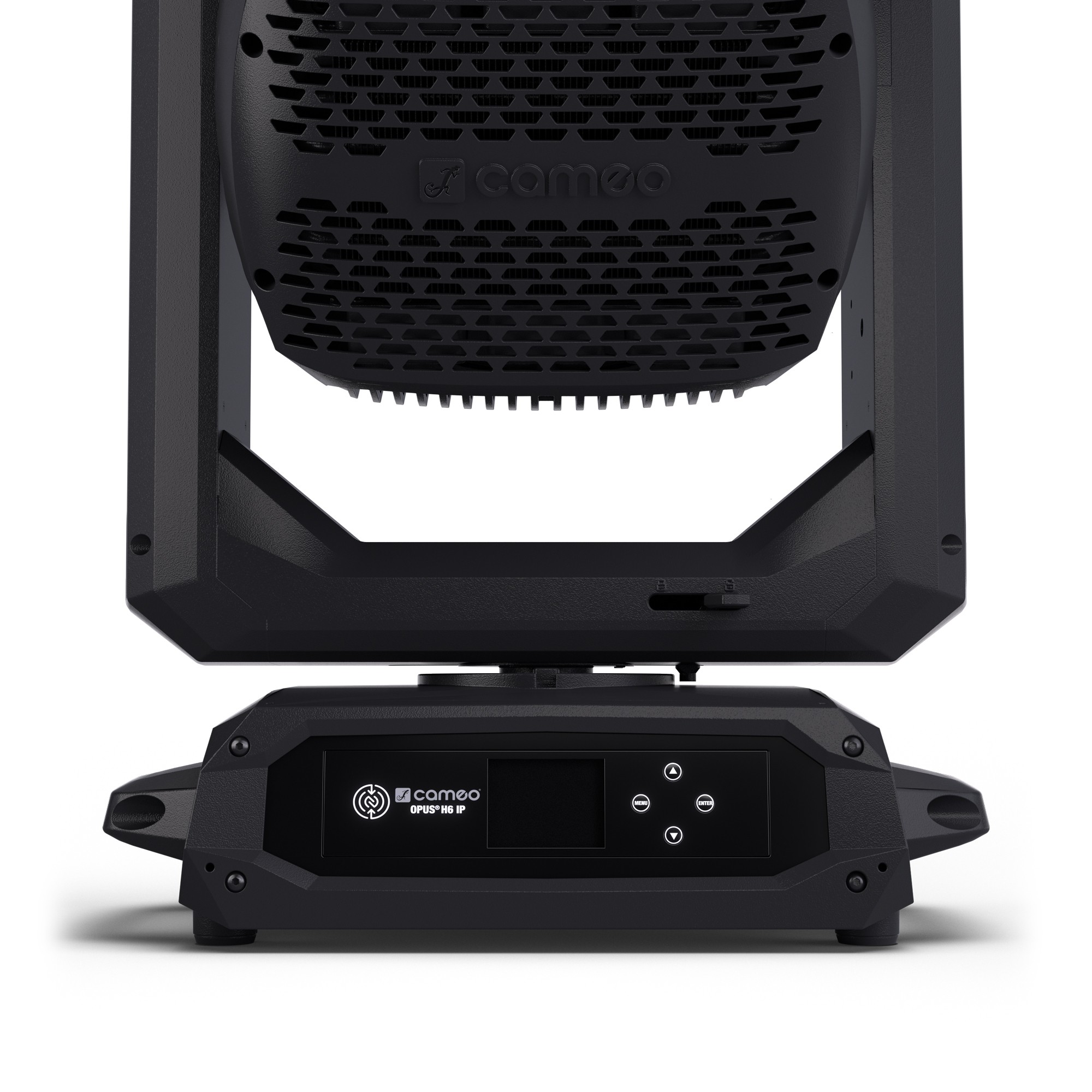

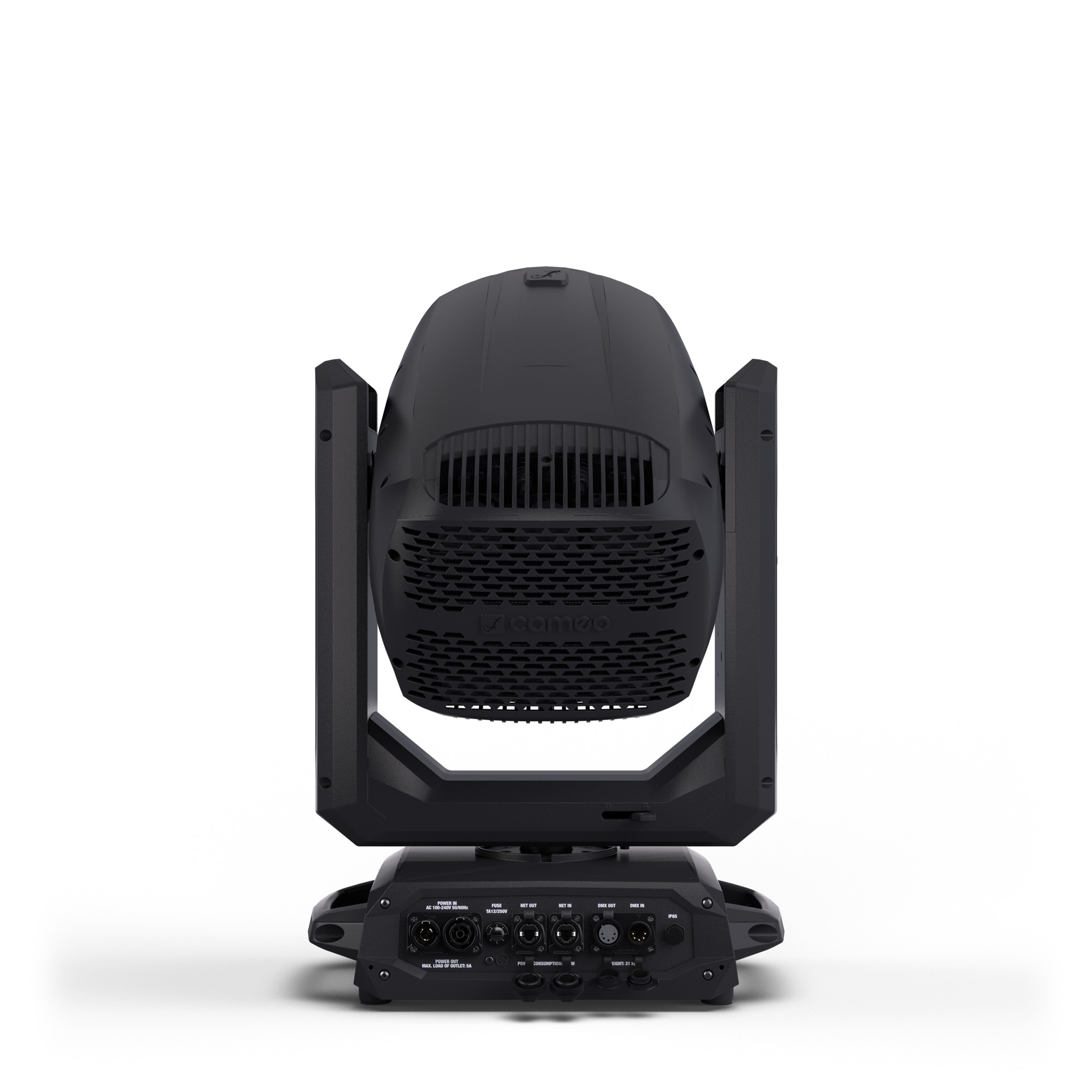

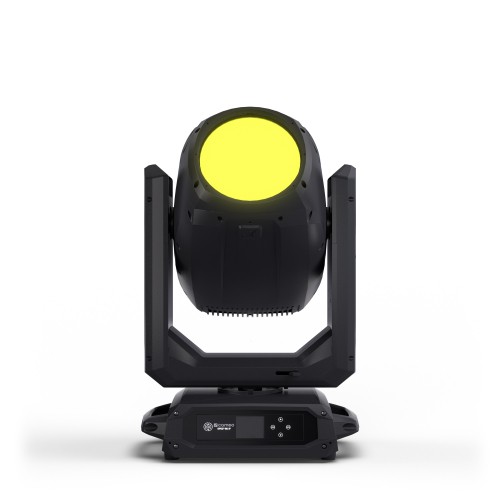

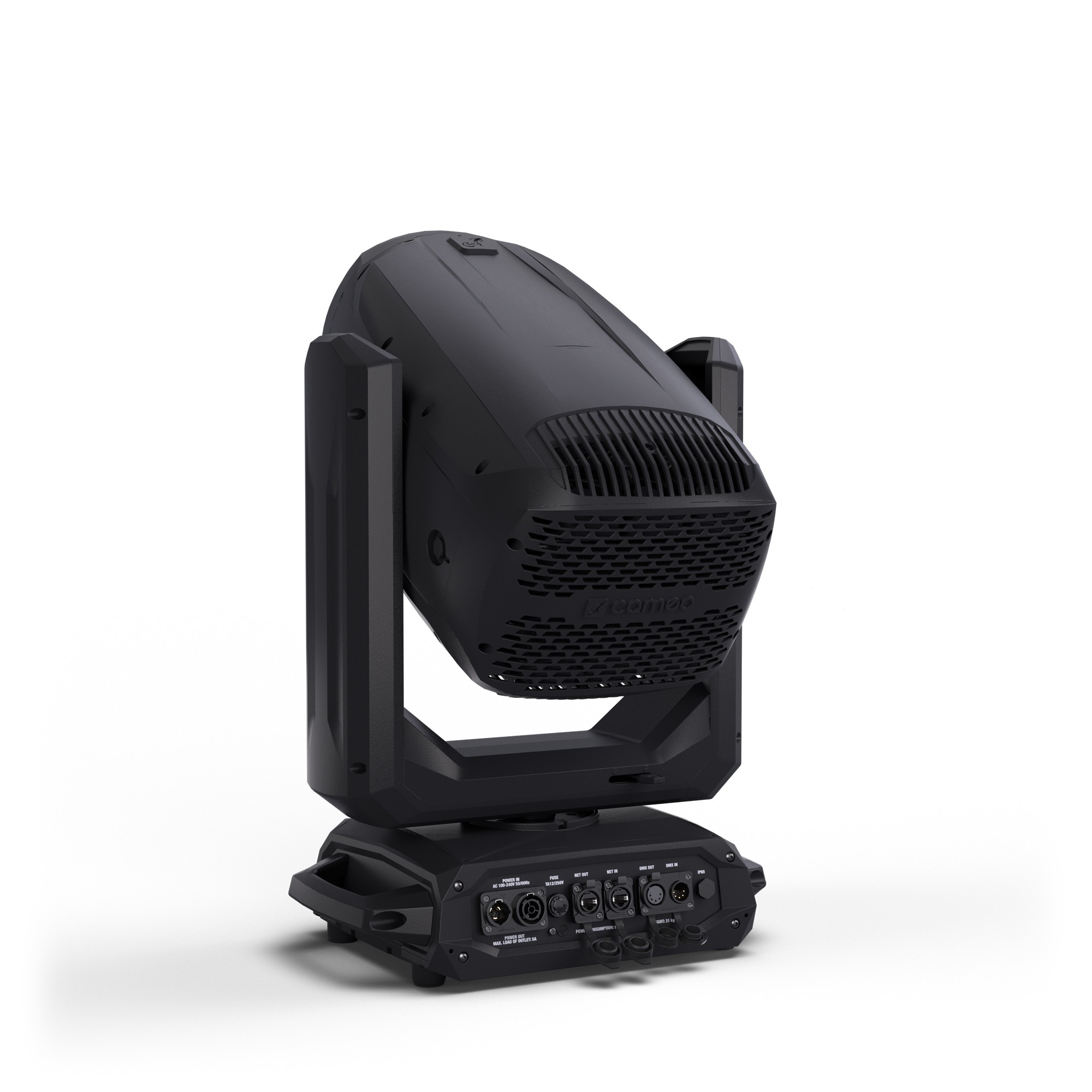

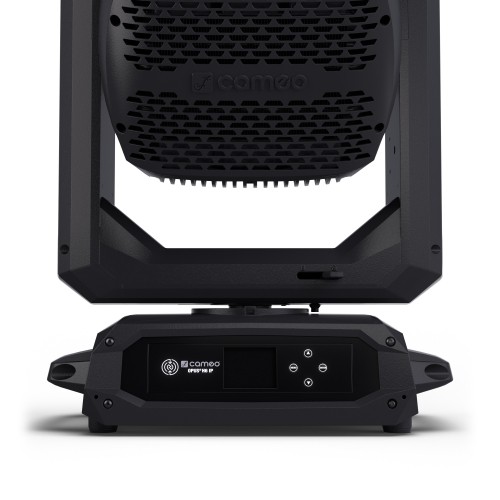

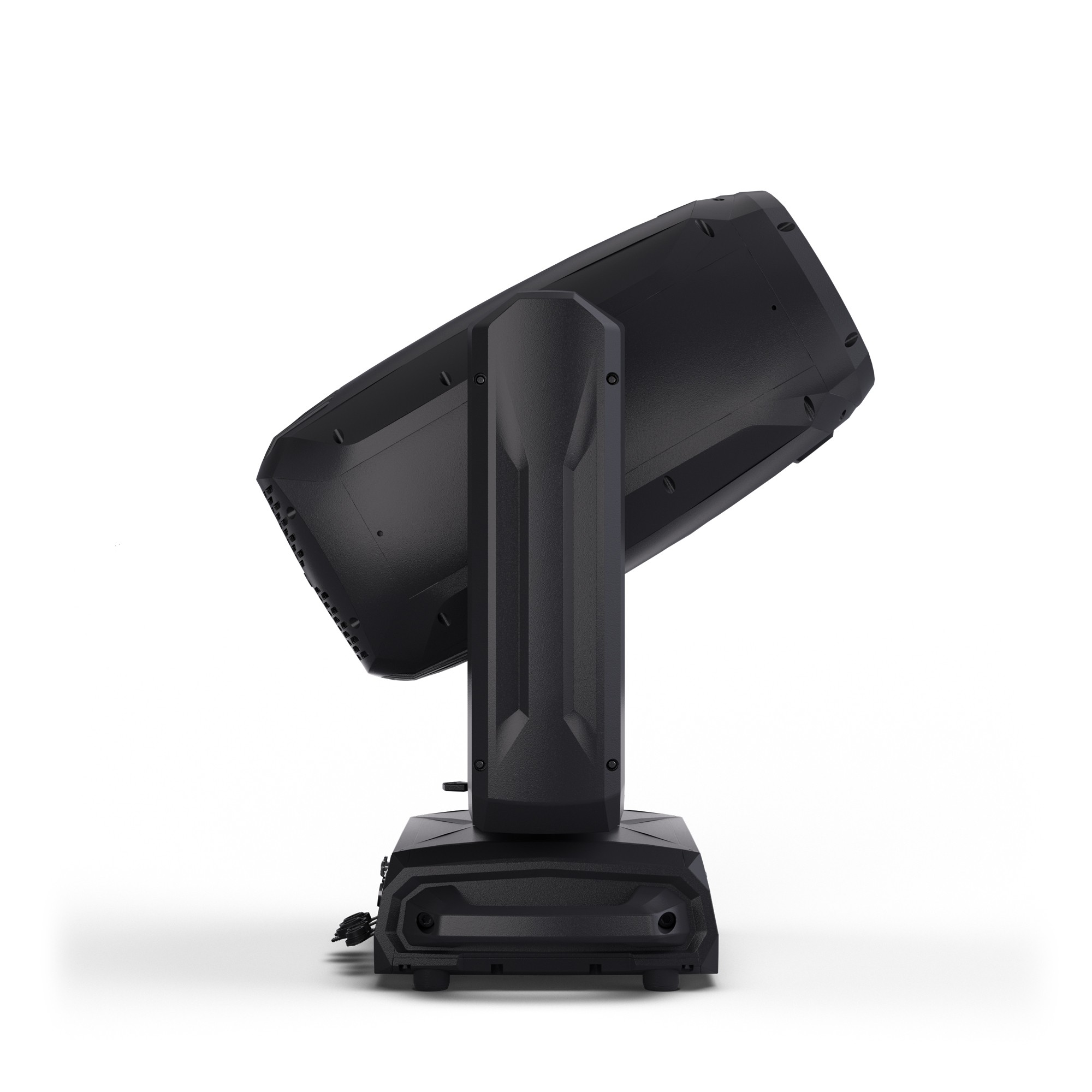

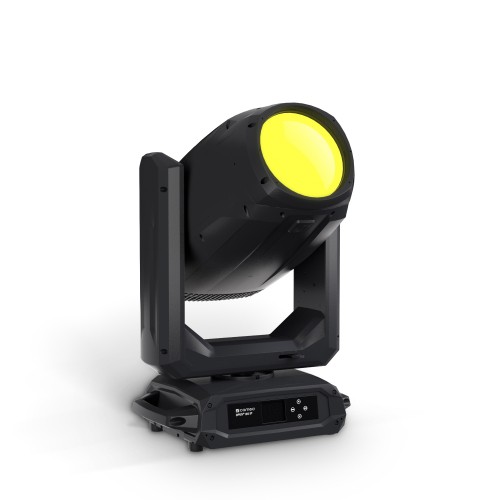

OPUS® H6 IP IP65 Hybrid Moving Head

Item No.: CLOH6IP
Series: OPUS® Series
Versions:
IP65 hybrid moving head with 600 W LED white light engine
Versatile use as a beam, spot, and wash light
Light output of 21,000 lm
CRI > 85 for natural, precise colours
Continuous pan rotation and wide zoom range from 2.4° to 53°
Four prisms on two levels for creative aerial effects
Compact design and low weight (< 28 kg)
183 mm front lens for a strong on-stage presence
NFC-ready for quick set-up as well as service and maintenance processes


Contents and categories

Display all

Contents and categories

Series

Search suggestions

Display all results
IP65 hybrid moving head with 600 W LED white light engine
Versatile use as a beam, spot, and wash light
Light output of 21,000 lm
CRI > 85 for natural, precise colours
Continuous pan rotation and wide zoom range from 2.4° to 53°
Four prisms on two levels for creative aerial effects
Compact design and low weight (< 28 kg)
183 mm front lens for a strong on-stage presence
NFC-ready for quick set-up as well as service and maintenance processes
Description

The OPUS® H6 IP represents the next generation of powerful hybrid moving heads in the OPUS® series. Developed for large stages and demanding productions, it combines a 600 W LED white light engine with a powerful light output of 21,000 lm and maximum versatility in just one device.

Whether as a precise beam, focused spot, or more concentrated wash light – the OPUS® H6 IP adapts flexibly to every requirement. Its wide zoom range of 2.4° to 53° and continuous pan rotation enable dynamic movements, quick position changes, and impressive looks from any perspective. Four prisms on two levels expand the creative spectrum with striking aerial effects and complex beam structures. Thanks to a CRI > 85, the OPUS® H6 IP ensures natural, clean colours – even at high light outputs.

Despite its performance, the OPUS® H6 IP maintains a strong practical focus: the robust IP65 housing, a weight of less than 28 kg, and the large 183 mm front lens pair a strong stage presence with efficient handling. NFC-readiness allows for swift and reliable set-up, configuration, service, and maintenance – a clear advantage when it comes to productions with tight schedules and changing set-ups.

Specifications
Photometric values
Illuminant type
White LED
Illuminant power
600 W
Luminous flux
22,000 lm
Front lens diameter
183 mm
Zoom range
2.4 - 53 °
LED PWM frequency
650 Hz, 1,530 Hz, 3,600 Hz, 12 kHz, 18.9 kHz, 25 kHz
Dimmer curves
Linear, Exponential, Logarithmic, S curve
Colours
Colour mix functions
CMY + CTO
Correlated colour temperature (CCT)
2,600 - 6,500 K
Colour rendering index (CRI)
> 70 (High CRI Filter: 85)
Movement
Pan
630 °
Tilt
270 °
Effects
Gobo wheels
2
Gobo wheel 1 – functions
Fixed
Gobo wheel 1 – gobos
14
Gobo wheel 2 – functions
Rotatable
Gobo wheel 2 – gobos
7
Prism layers
2
Strobe
0 - 20 Hz
Frost
2
Animation
Yes
Control
Controller protocols
Art‑Net, CRMX, DMX512, RDM, sACN, W‑DMX™ (Transceiver)

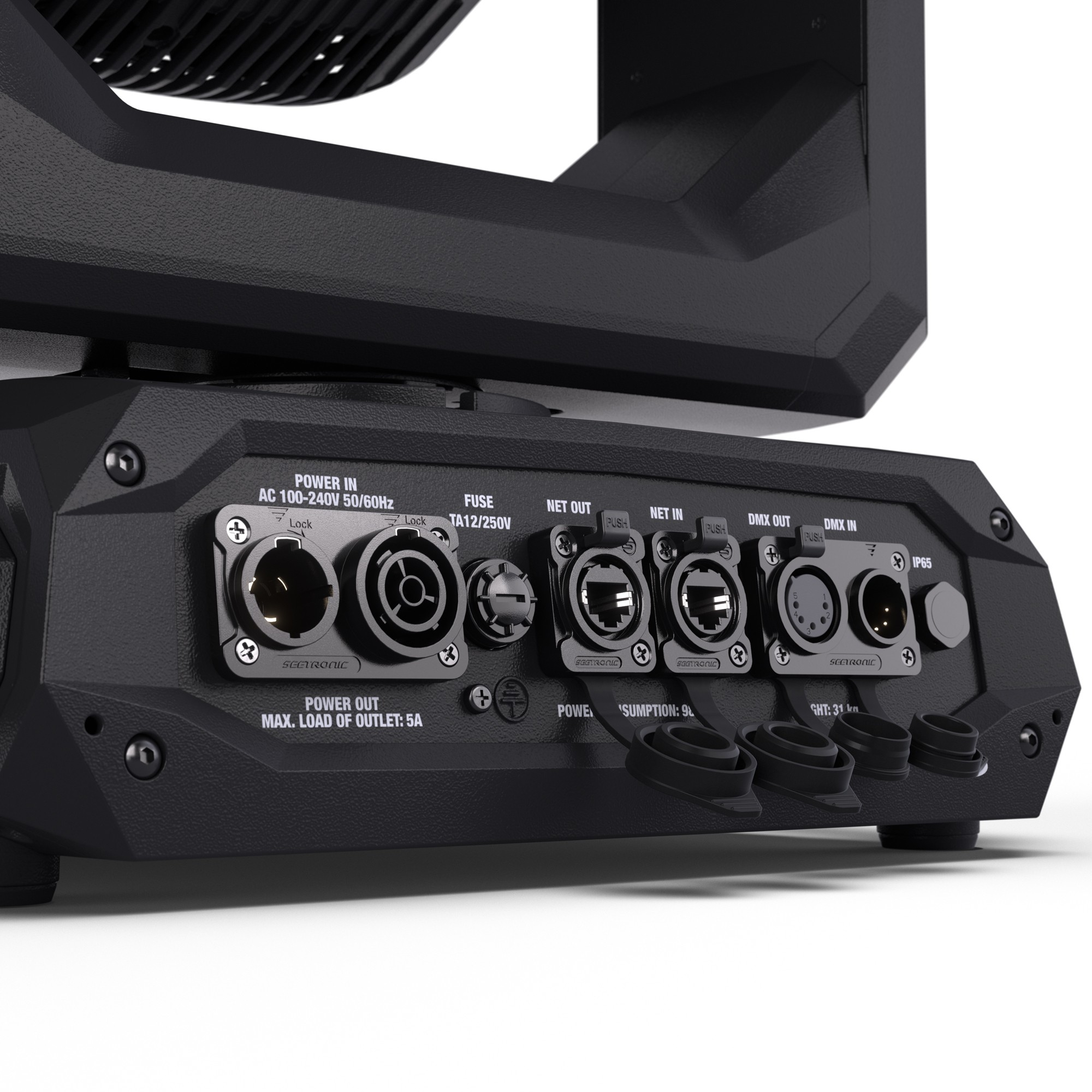

Data in connector
XLR 5-pole male
Data out connector
XLR 5-pole female
Mains operation
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Mains connector
Mains plug device outdoor female & TRUE1®
Housing
Chassis material
Aluminium
Colour
Black
Cooling
Cooling system
Temperature controlled fan cooling
Environmental
Protection class
IP65
Ambient temperature
-20 - 45 °C
Dimensions & weight
Weight
28 kg
Other properties
Included Accessories
Omega adaptor, Mains cable
