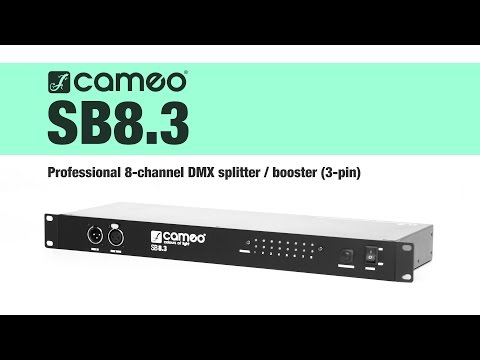

SB8.3 8-Channel DMX Splitter / Booster (3-pin)

Item No.: CLSB83
Series: CL SPLITTER
Versions:
Professional 8-way DMX splitter / booster
Chassis 1U 19" rack-mount enclosure
DMX INPUT: 1 x XLR (3-pin) front panel, 1 x XLR (3-pin) back panel
DMX THRU: 1 x XLR (3-pin) front panel, 1 x XLR (3-pin) back panel
8 electrically isolated XLR (3-pin) outputs on the back
DMX status indicator per channel
Power status indicator
Switchable 120 Ohm terminating resistor for the DMX THRU output jack
Front and rear rack-mount angle attachment options


Contents and categories

Display all

Contents and categories

Series

Search suggestions

Display all results
Professional 8-way DMX splitter / booster
Chassis 1U 19" rack-mount enclosure
DMX INPUT: 1 x XLR (3-pin) front panel, 1 x XLR (3-pin) back panel
DMX THRU: 1 x XLR (3-pin) front panel, 1 x XLR (3-pin) back panel
8 electrically isolated XLR (3-pin) outputs on the back
DMX status indicator per channel
Power status indicator
Switchable 120 Ohm terminating resistor for the DMX THRU output jack
Front and rear rack-mount angle attachment options
Description

The Cameo CLSB83 is the professional solution for configuring DMX networks. The splitter and booster in 19" format amplifies the DMX input signal and distributes it to 8 electrically isolated outputs. It is connected directly to the DMX controller or to DMX devices. The input and the THRU socket for looping of the signal are duplicated on the front and back of the CLSB83 and connected in parallel. Bright LEDs show the DMX and power status of the channels on the front panel, the outputs are located on the back. A switchable 120 Ohm terminating resistor on the DMX THRU output and the power switch complete the equipment; the IEC-cable is supplied. For convenient output connector access and reverse installation the rack-mount angles can be attached to the rear of the chassis.

The Cameo DMX splitter and booster is also available in 5-pin design (art. No CLSB85).

Specifications
General
Product type
Other Lighting Accessories
Type
DMX splitter / booster
DMX inputs
2 (parallel)
DMX input connectors
XLR 3-pin male
DMX Thru Outputs
2 (parallel)
DMX Thru Output Connectors
XLR 3-pin female
DMX outputs
8 (electrically isolated)
Controls
DMX Thru Terminator, Power On/Off
Indicators
8 x Power LED, 8 x Signal LED
Mains connector
IEC socket
Power supply
transformer
Operating voltage
230 V AC, 50 Hz
Power consumption
15 W
Width
483 mm
Height
44 mm
Depth
160 mm
Weight
3 kg
Accessories (included)
Power cord
