OPUS® SP6 IP IP65 Spot Profile Moving Head

Item No.: CLOSP6IP
Series: OPUS® Series
Versions:
IP65 spot profile moving head with 600 W LED white light engine
High luminous flux of 23,000 lm
Fully closable framing system (±85°) for accurate beam shaping
CRI > 85 for natural, precise colours
Continuous pan rotation and wide zoom range of 3.5° to 53°
Compact design and low weight (< 28 kg)
183 mm front lens for a strong on-stage presence
NFC-ready for quick set-up as well as service and maintenance


Contents and categories

Display all

Contents and categories

Series

Search suggestions

Display all results
IP65 spot profile moving head with 600 W LED white light engine
High luminous flux of 23,000 lm
Fully closable framing system (±85°) for accurate beam shaping
CRI > 85 for natural, precise colours
Continuous pan rotation and wide zoom range of 3.5° to 53°
Compact design and low weight (< 28 kg)
183 mm front lens for a strong on-stage presence
NFC-ready for quick set-up as well as service and maintenance
Description

The OPUS® SP6 IP is a powerful IP65 spot profile moving head designed for use on large outdoor stages and at festival productions. With its 600 W LED white light engine and a high luminous flux of 23,000 lm , it delivers a commanding performance and precise lighting design even under challenging conditions.

The fully lockable framing system with ±85° rotation enables precise beam shaping, while the large zoom range of 3.5° to 53° makes both narrow, clearly defined spots and wide-ranging illumination possible. In combination with continuous pan rotation, the OPUS® SP6 IP offers full positional freedom and dynamic movements on stage. It ensures natural and clean colour rendering thanks to a CRI > 85.

A special feature of the OPUS® SP6 IP is its exceptional manoeuvrability: despite its IP65 protection and robust design, the light is still compact and weighs less than 28 kg. The large 183 mm front lens ensures a strong visual presence, while NFC-readiness allows quick installation as well as efficient service and maintenance – ideal for operations under tight deadlines and with frequent set-up changes.

Specifications
Photometric values
Illuminant type
White LED
Illuminant power
600 W
Luminous flux
23,000 lm
Front lens diameter
183 mm
Zoom range
3.5 - 53 °
LED PWM frequency
650 Hz, 1,530 Hz, 3,600 Hz, 12 kHz, 18.9 kHz, 25 kHz
Dimmer curves
Linear, Exponential, Logarithmic, S curve
Colours
Colour mix functions
CMY + CTO
Correlated colour temperature (CCT)
2,600 - 6,500 K
Colour rendering index (CRI)
> 70 (High CRI Filter: 85)
Colour wheels
1 wheel with 7 colours
Movement
Pan
630 °
Tilt
270 °
Effects
Gobo wheels
2
Gobo wheel 1 – functions
Fixed
Gobo wheel 1 – gobos
7
Gobo wheel 2 – functions
Rotatable
Gobo wheel 2 – gobos
7
Prism layers
2
Strobe
0 - 20 Hz
Iris
Yes
Frost
2
Animation
Yes
Framing blades
Yes
Framing blades rotation
-85 - 85 °
Control
Controller protocols
Art‑Net, CRMX, DMX512, RDM, sACN, W‑DMX™ (Transceiver)

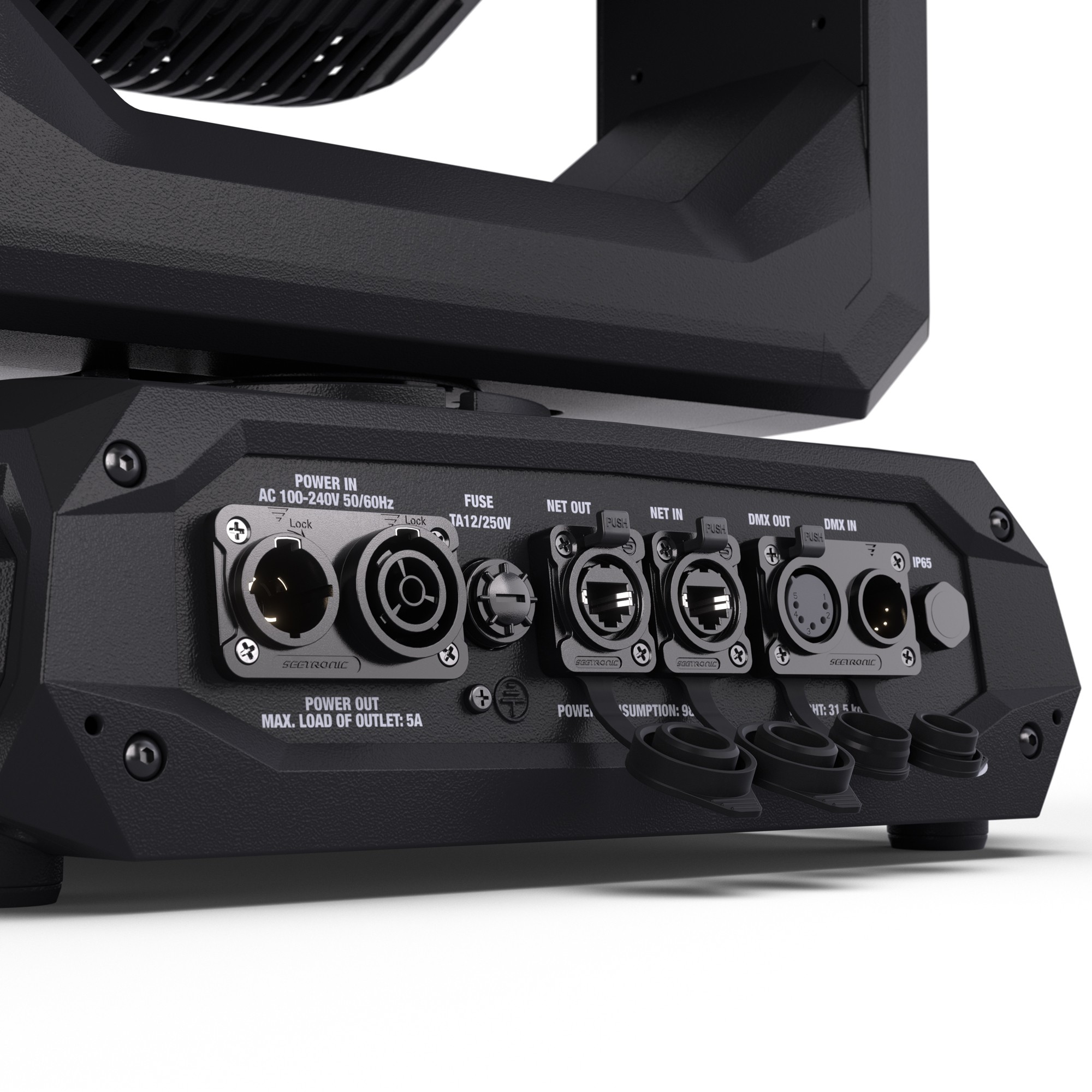

Data in connector
XLR 5-pole male
Data out connector
XLR 5-pole female
Mains operation
Operation voltage
100 V AC - 240 V AC / 50 - 60 Hz
Housing
Chassis material
Aluminium
Colour
Black
Cooling
Cooling system
Temperature controlled fan cooling
Environmental
Protection class
IP65
Ambient temperature
-20 - 45 °C
Dimensions & weight
Weight
28 kg
Other properties
Included Accessories
Omega adaptor, Mains cable
